Surplus Assets From 80hl Brewery

Jennings

Location: Cockermouth, Cumbria, UK
Main point of contact: Roger Whitfield, tel:+44 7583 255486
Viewing Strictly By Appointment Only

Featured assets:

Dry Goods Handling

  • 1 x wheel in/out intake conveyor

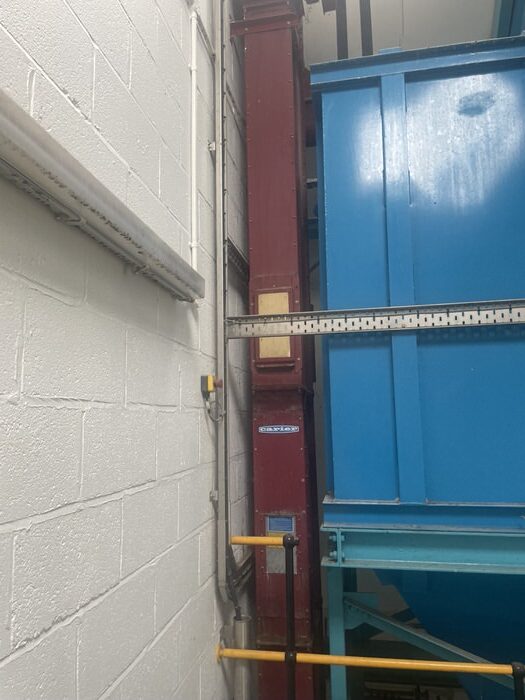

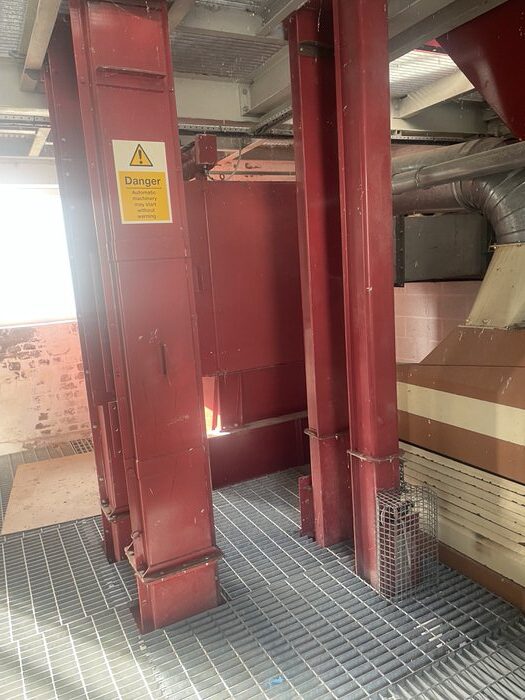

  • Bucket elevators
    Chain and flight conveying

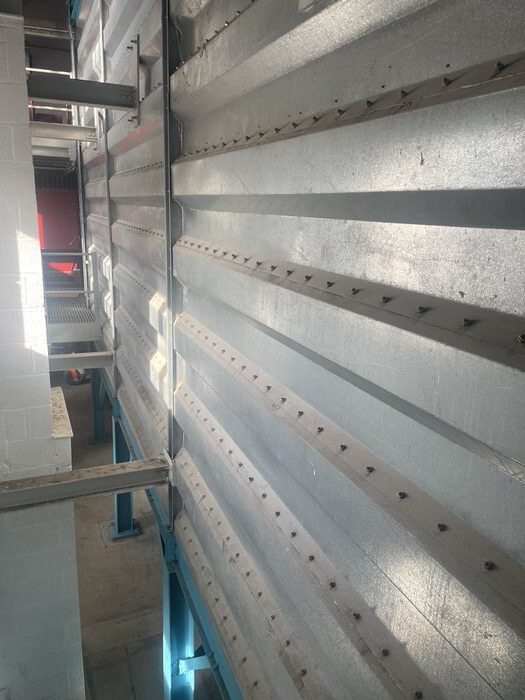

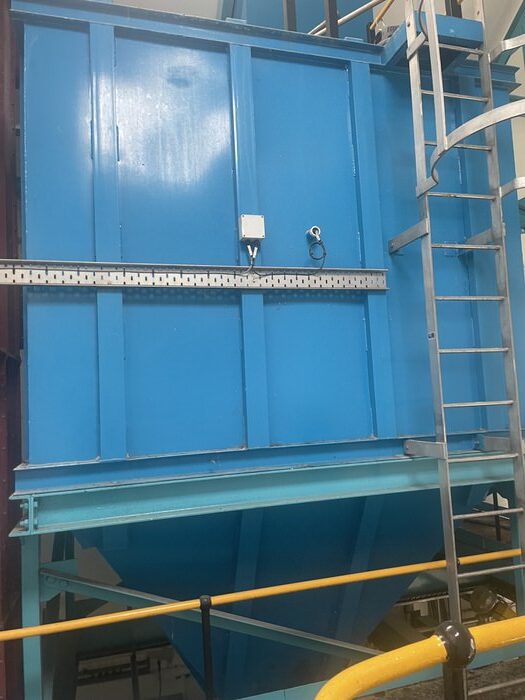

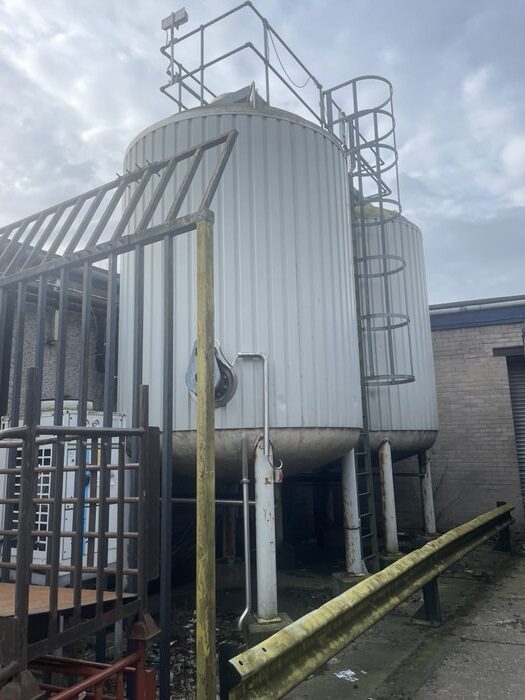

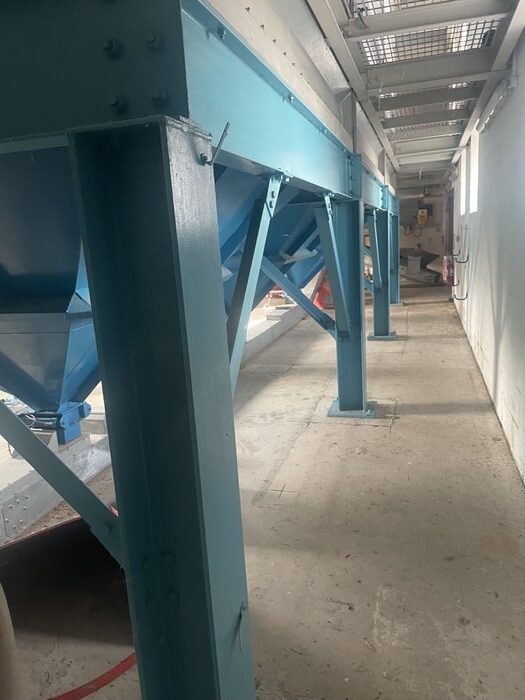

  • 3 x 28 tonne grain silos
  • Dust extraction system
  • 50 kg tip weigher
  • Happle de-stoner
  • Control panel and PLC
  • Enclosed conveyors and elevators from intake to malt mill

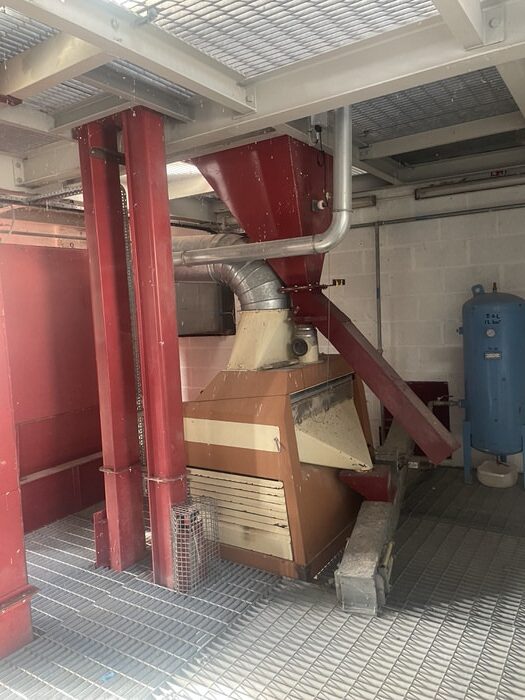

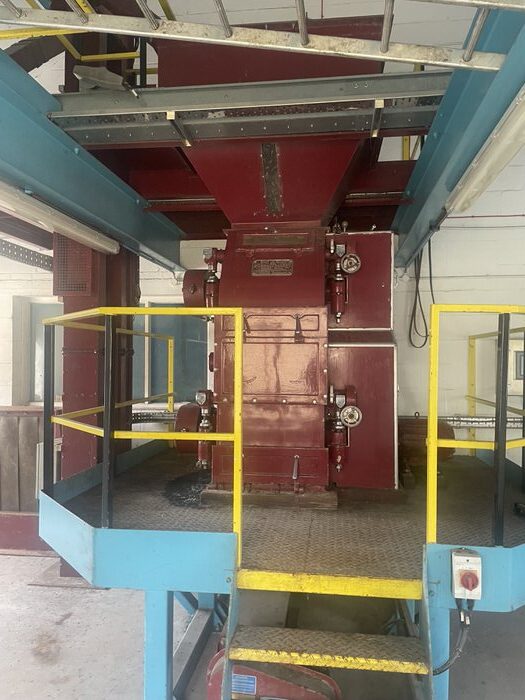

  • 1 x 4 roll Porteus malt mill with magnet, soft start and PLC control ( approx 1.5 onnes per hour at current speed)
  • Adjacent adjunct hopper with feed into mill

Brewhouse Equipment

  • Approx 80 brl Hot Liquor tank with internal Duplex steel steam heating coil (high and low level control probes)

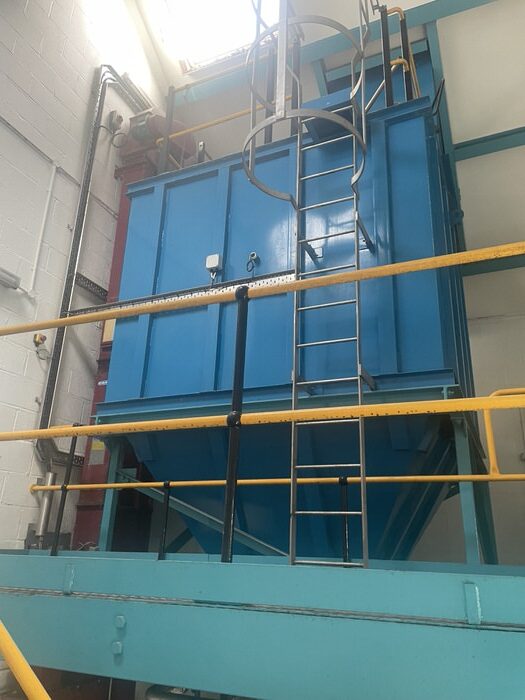

  • Approx 5 tonne Grist Case and Steels masher

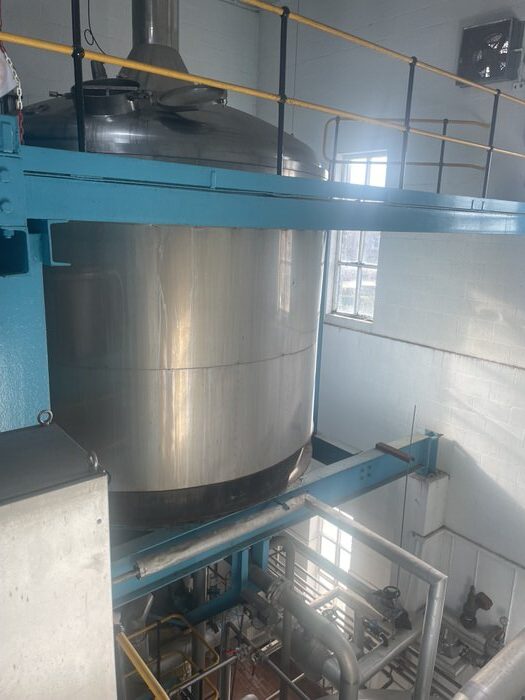

  • Nominal 4 tonne Mash Tun (will take just over 5 tonnes to top), internal rakes for spent grain removal to Pondorff
  • Underback with steam coil for sugar dissolving and wort run off

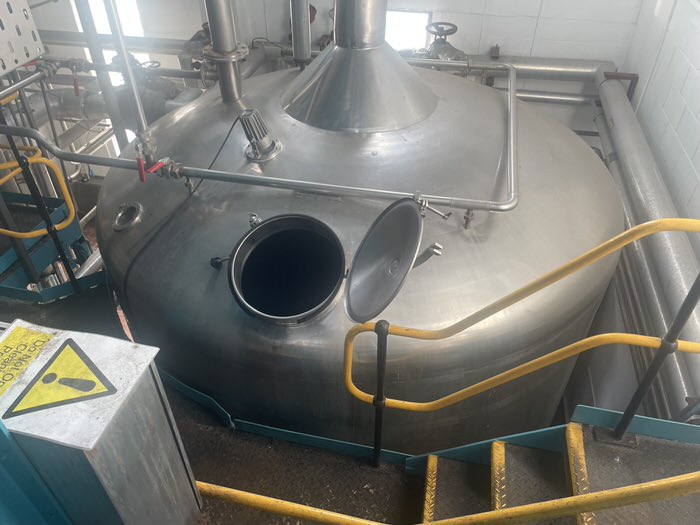

    150 brl stainless steel wort copper with external calandria

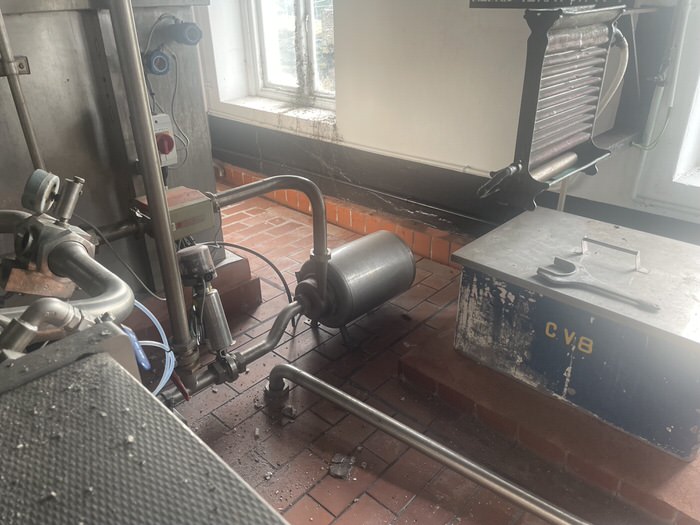

  • Variety of pumps for liquid transfer around brewhouse and to fermentation
  • 150 brl stainless steel Hop Back
  • Variety of valves both manual and automatic
  • Brewhouse PLC control panel
  • Stainless Steel pipework of various diameters
  • Steam pressure reducing valves

Steam Raising Equipment

  • 1 x gas pump
  • 1 x Cradley Boiler approx 10,000 lb per hour (9.8 bar WP) with safety and crown valves
  • 1 x Dunphy automatic gas burner with digital controller
  • 1 x Hotwell tank

Fermentation and Cold Wort Handling

  • 1 x approx 5 brl hot wort receiver with level controls

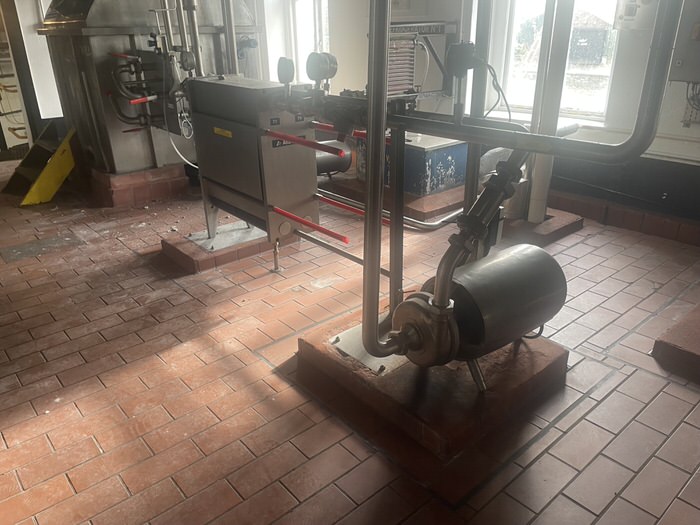

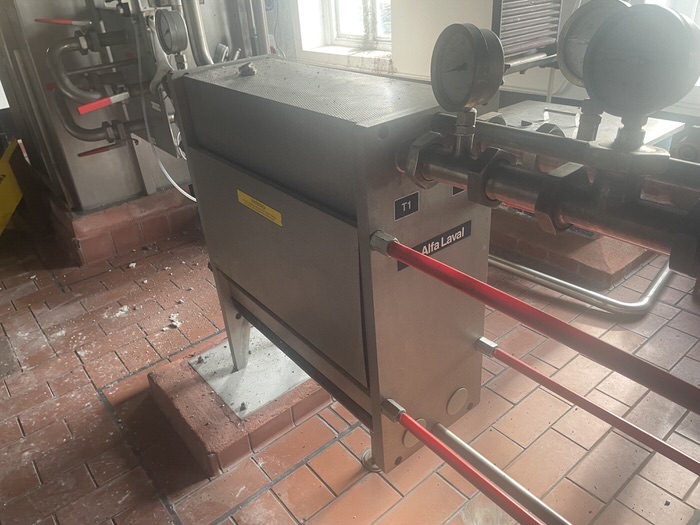

  • 1 x approx 50 brl per hour Alfa Laval wort paraflow with automatic temperature control
  • Oxygen injection via separate cylinder supply
  • Various manual and automatic valves
  • Stainless steel pipework of varying sizes

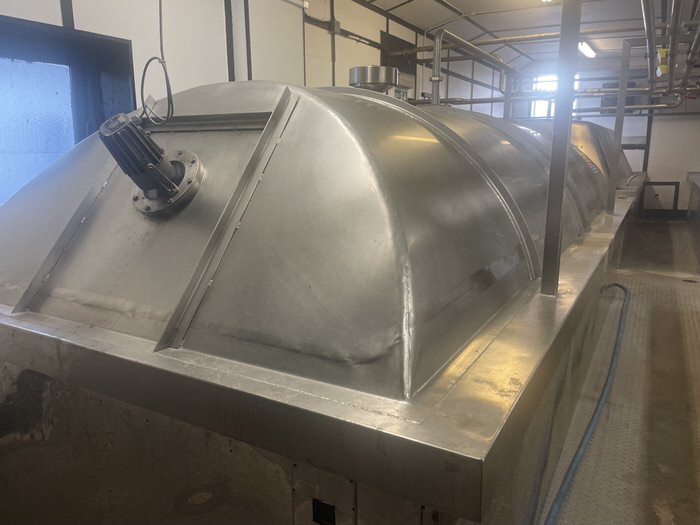

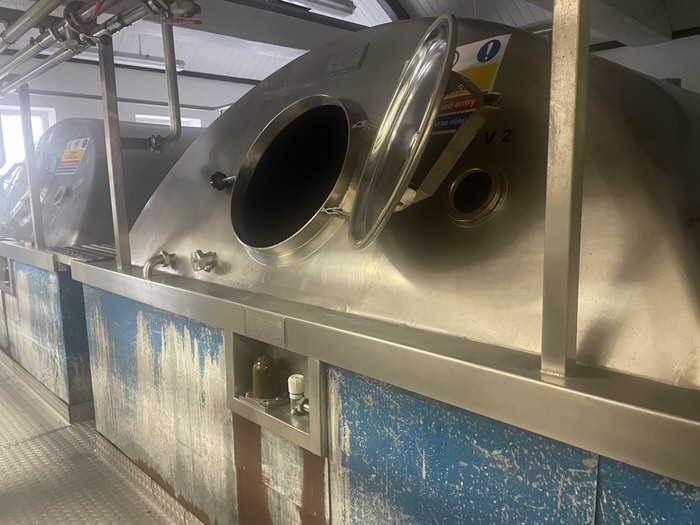

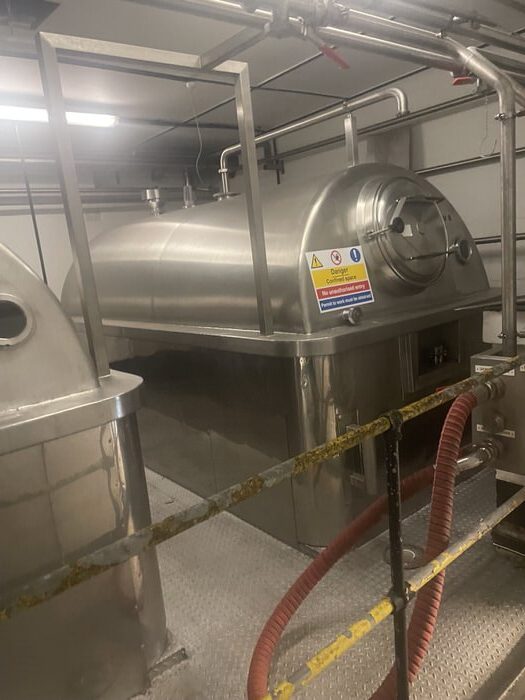

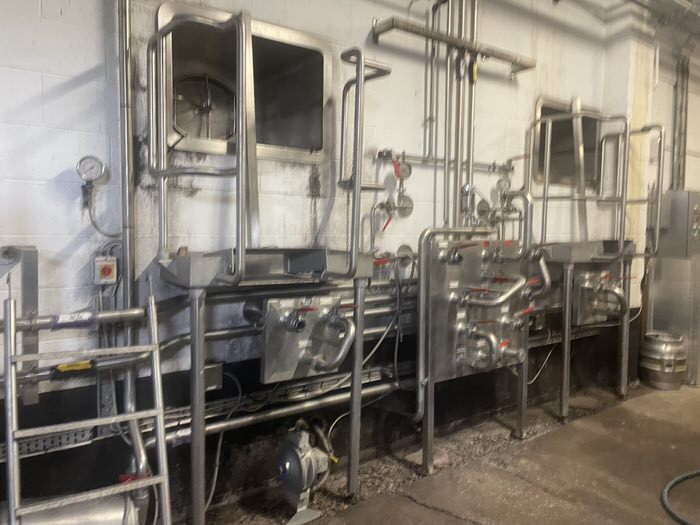

  • 6 x 150 brl, 5 x 100 brl and 4 x 50 brl stainless steel enclosed fermenting vessels with integral Toftejorg 360 degree CIP
    cleaning heads
  • Variety of pumps and fittings
  • PLC control panels and controllers
  • Single use CIP system

Yeast Storage and Handling

  • 1 x Yeast skimming vacuum pump

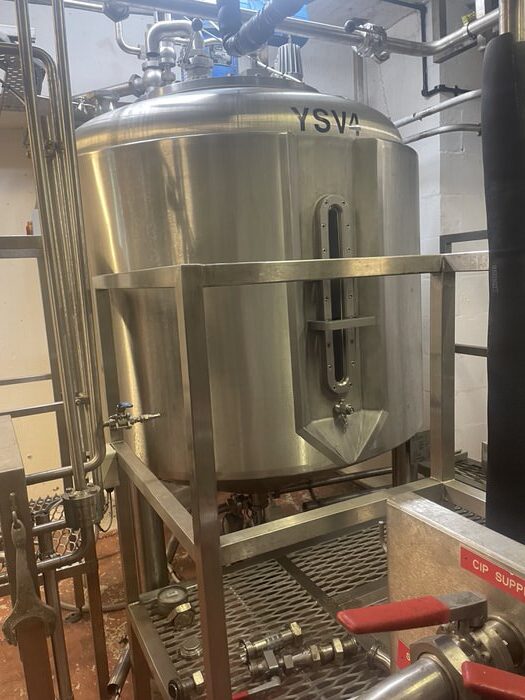

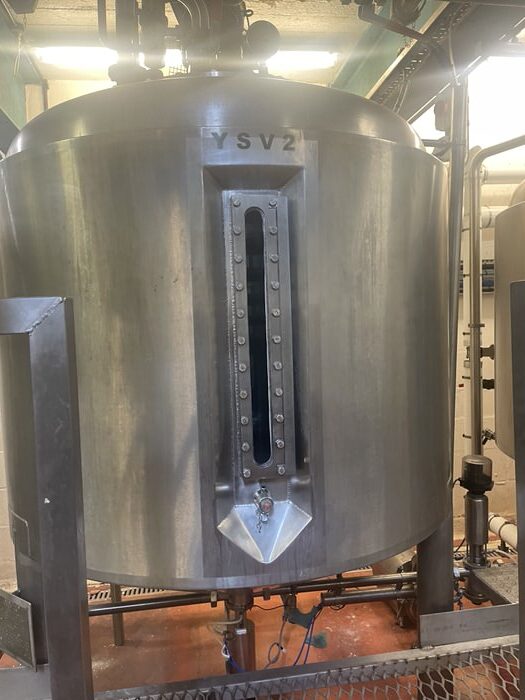

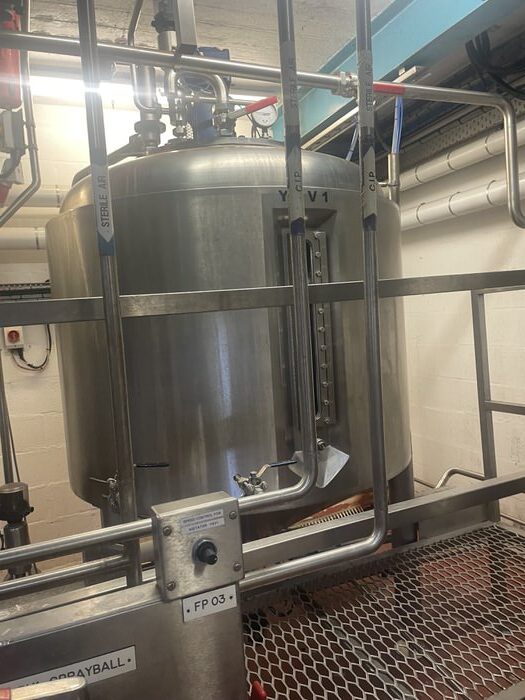

  • 4 x approx 5 brl yeast storage tanks (vacuum rated) with glycol cooling jackets and integral mixer

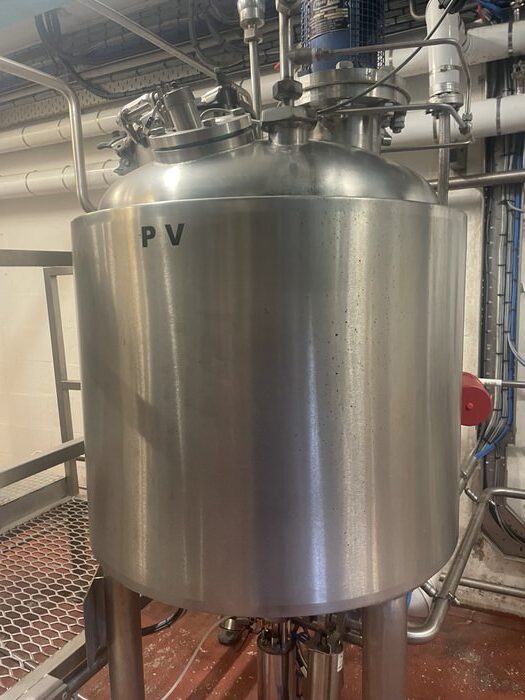

  • 1 x approx 1 brl yeast pitching tank with integral mixer and pressure pad weighing
  • Single use CIP system
  • Variety of valves both manual and automatic
  • Stainless steel pipework of varying diameters

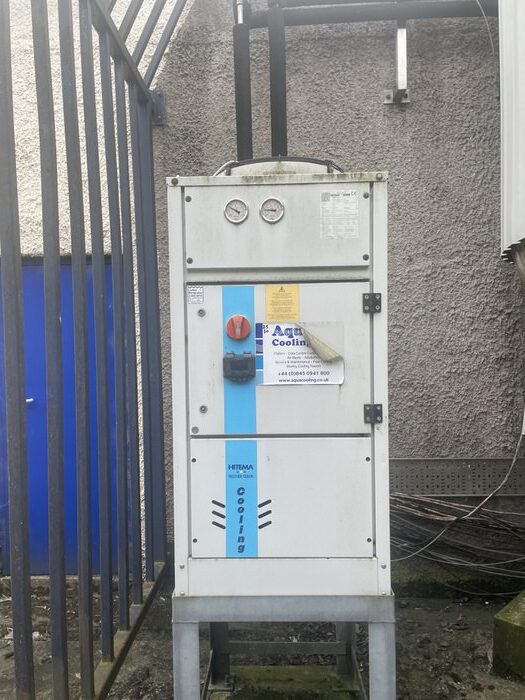

  • 1 x yeast plant chiller

Other Plant Equipment

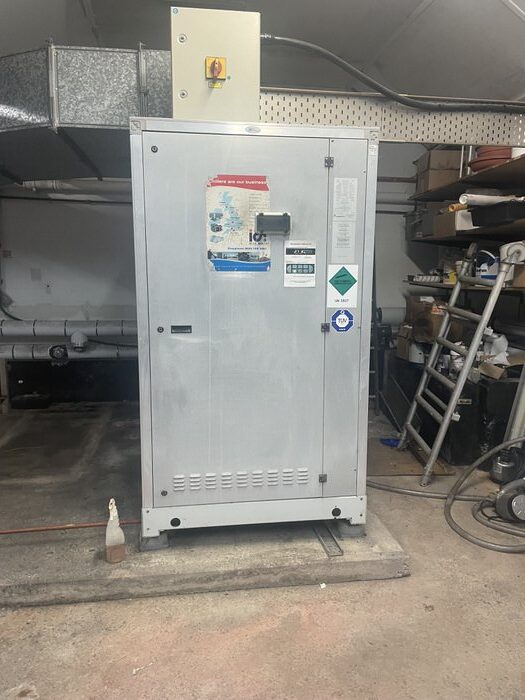

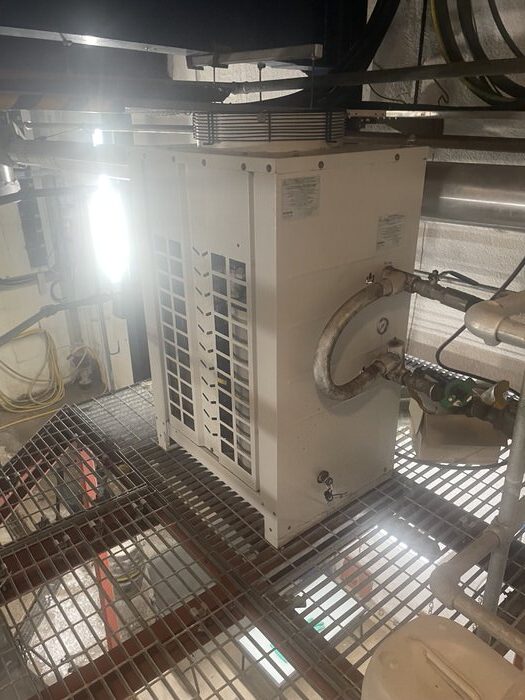

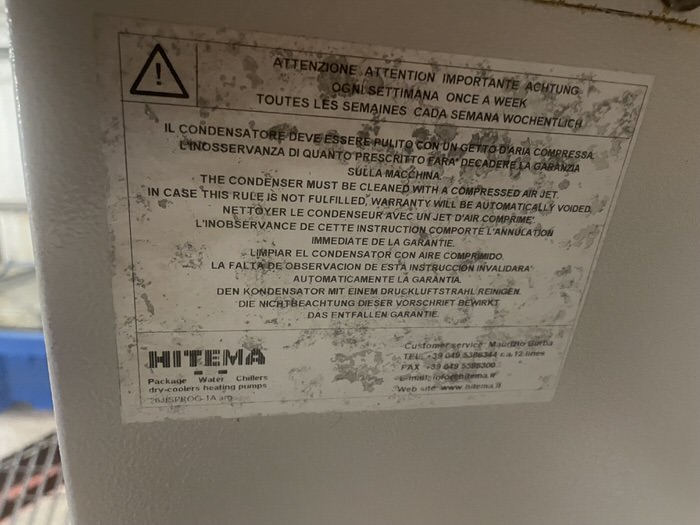

  • 1 x Climaveneta attemporation liquor chiller
  • 1 x Attemporation liquor storage tank for supply and return
  • 2 x supply and return pumps with Danfoss controllers
  • 2 x standby chillers

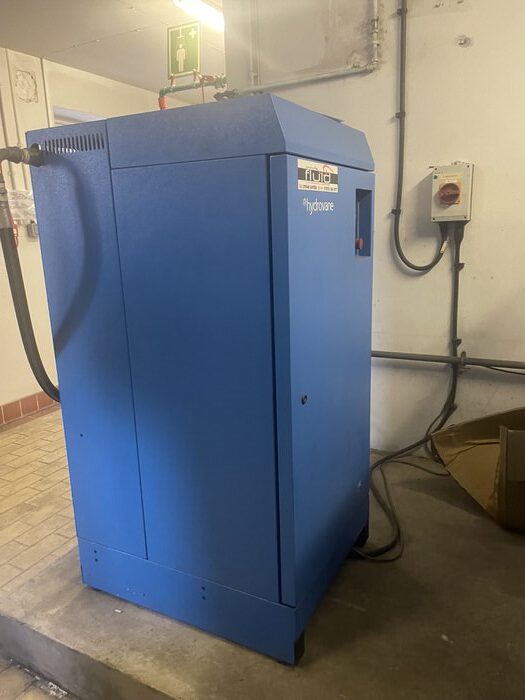

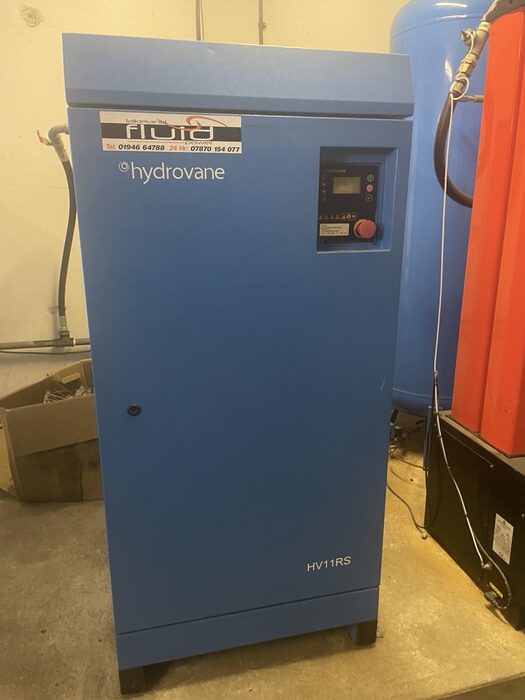

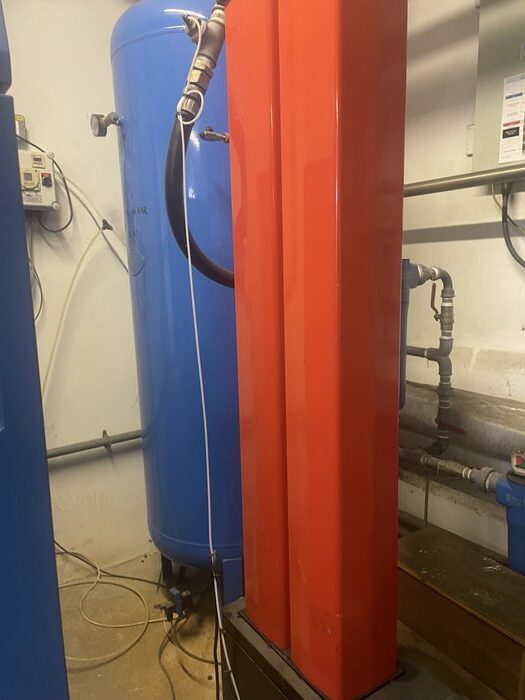

    1 x 11 KW Hydrovane Air Compressor
  • 1 x 22 KW Hydrovane Air Compressor
  • CIP plant control panels
  • Variety of chemical dosing pumps for CIP plant

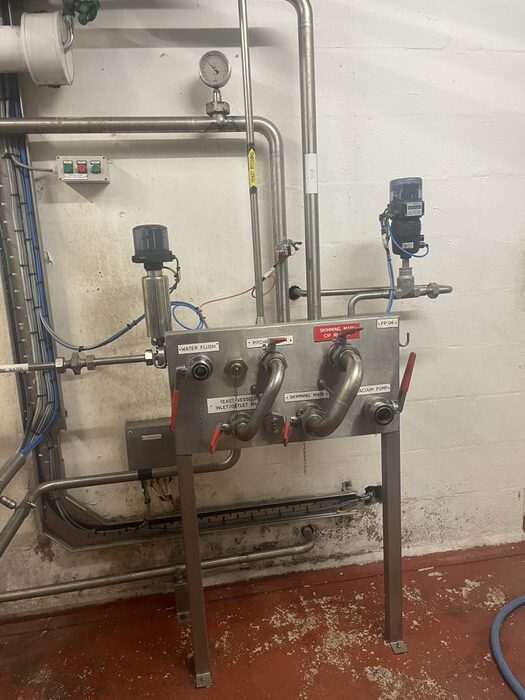

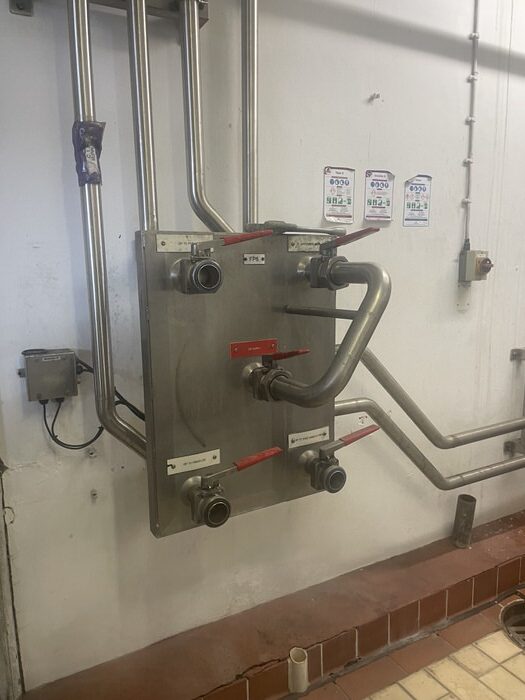

  • Flow plates with variety of manual valves

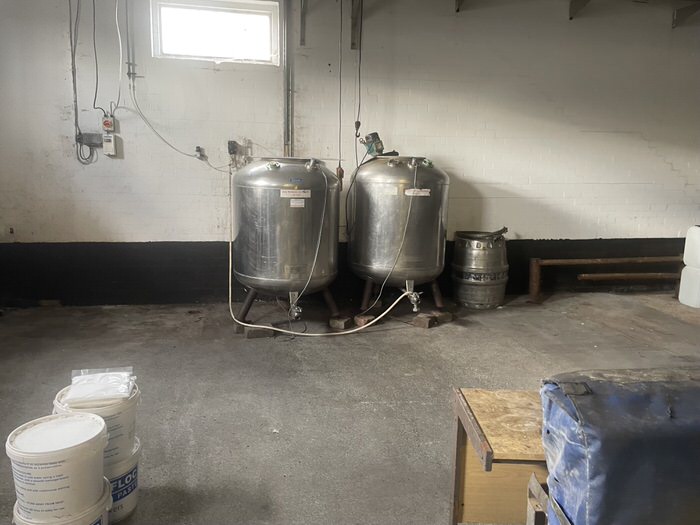

  • Variety of 5 brl storage tanks (yeast, finings, etc.)

Racking Plant

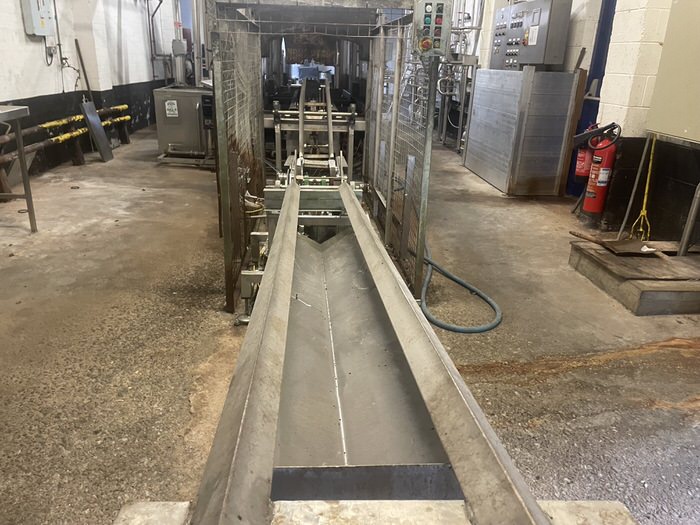

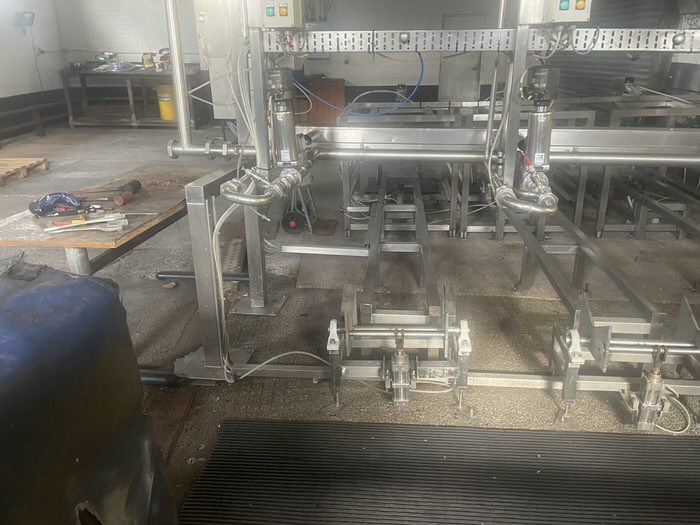

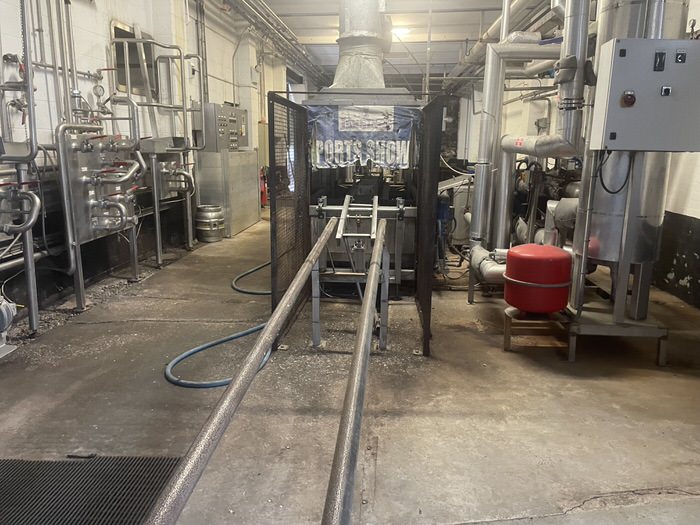

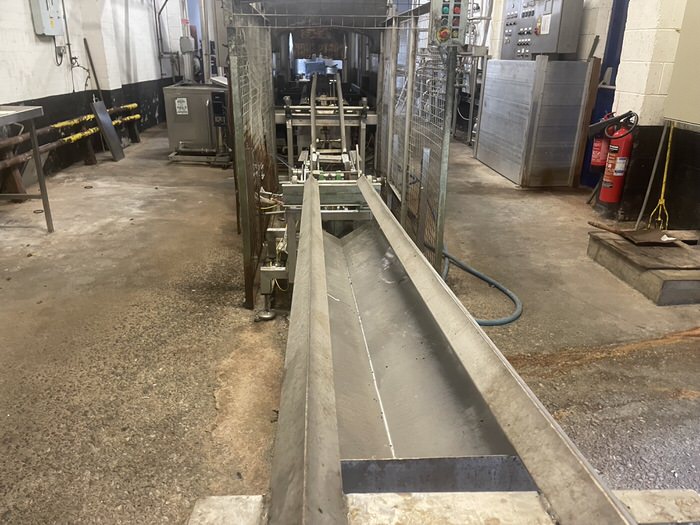

  • 1 x Gimson cask washer with PLC control, can handle all four common UK cask sizes (pins, firkins, kils and brls)
  • Approx 100 firkins per hour

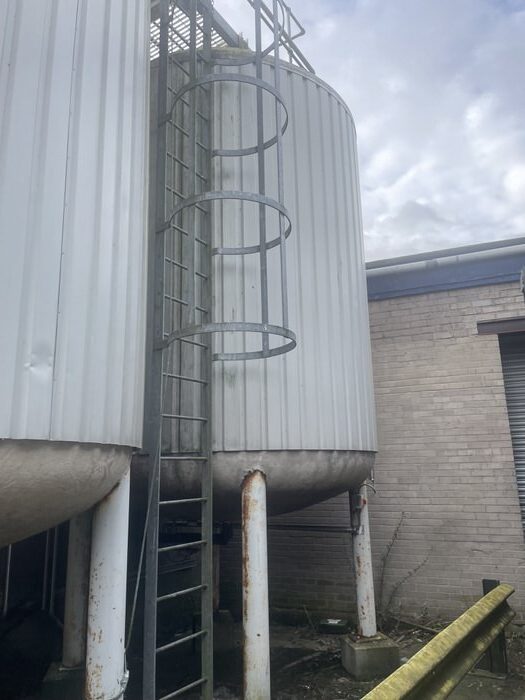

  • 2 x 100 brl Racking Tanks with internal rousers and glycol cooling jackets
  • 1 x control panel

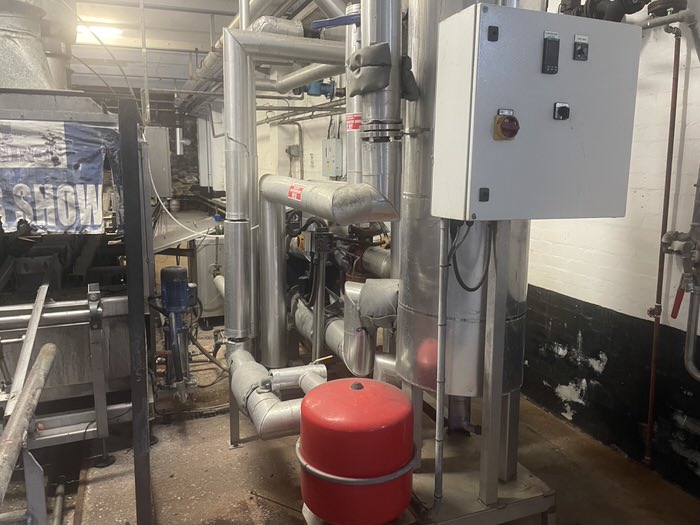

  • 1 x 95 degree C hot liquor generating plant

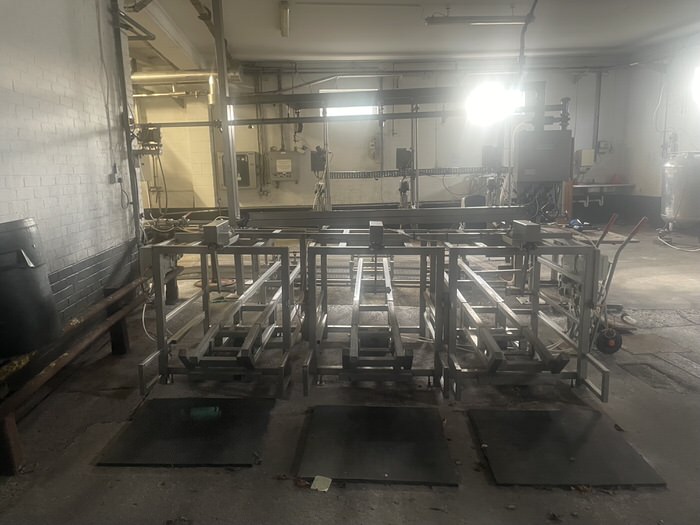

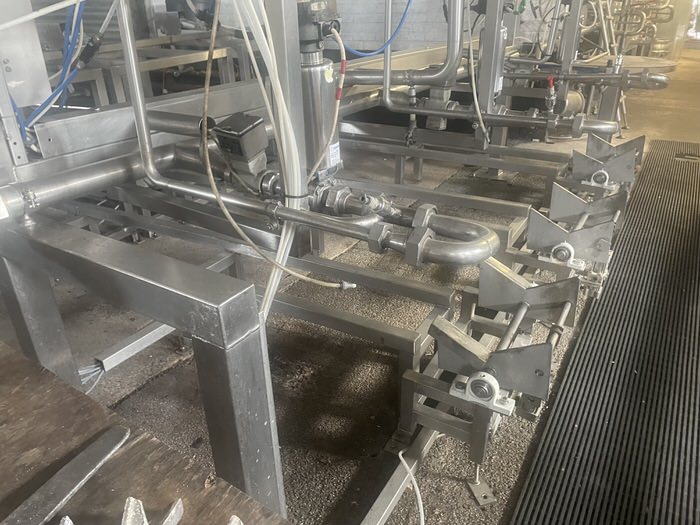

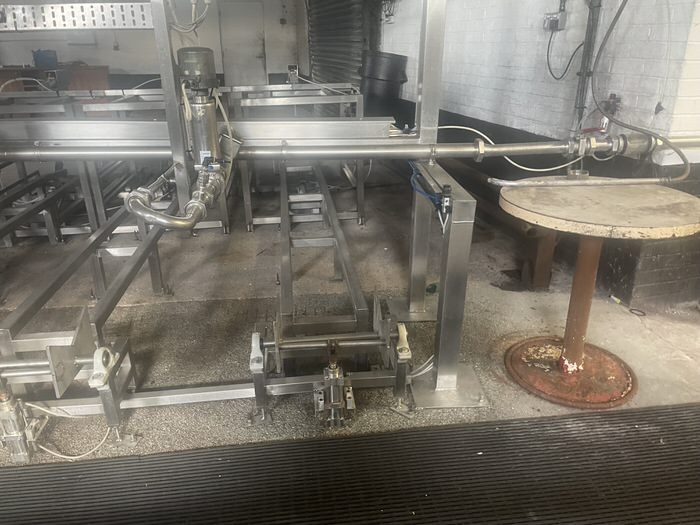

  • 3 x manual cask racking heads with fill level control
  • 1 x automatic finings dosing and control system
